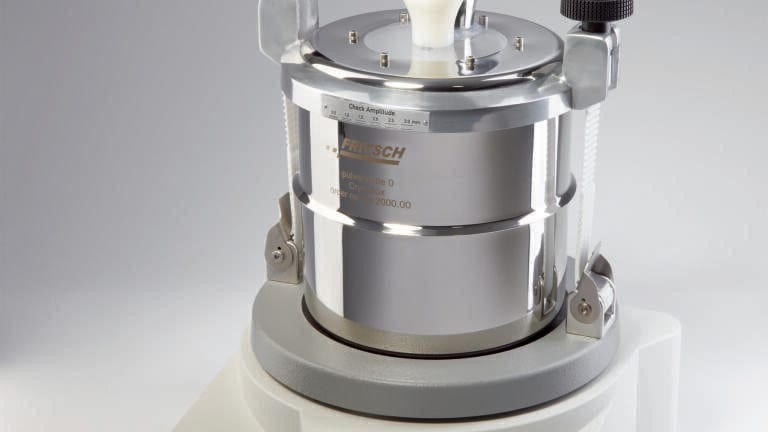

Vibratory Ball Mill for Grinding and Sieving In One Uunit

The Fritsch Vibratory Micro Mill PULVERISETTE 0 is the ideal laboratory mill for fine comminution of medium-hard, brittle, moist or temperature-sensitive samples, dry or in suspension, as well as for homogenising of emulsions and pastes. It creates perfect, loss-free grinding results in shortest times.

It is ideal for: chemical analysis; environmental research; pharmaceuticals and medicine; biotechnology; forensic analysis; materials technology; RoHS.

For fast embrittlement of soft, slightly oily, fatty or moist materials for cryogenic grinding, the Fritsch cryo-box is offered. Simply insert the filled grinding set into the cryo-box and fill it with liquid nitrogen with this method even extremely difficult-to- grind samples can be ground down to analysis fineness. The thick insulation ensures a particularly efficient use of coolant.

For dry and wet sieving, the Fritsch PULVERISETTE 0 can be converted to a Vibratory Sieve Shaker for quantitative particle size analysis of solids (measuring range 32 μm – 63 μm) and suspensions (measuring range 20 μm – 10 mm) by simply inserting corresponding sieves.

Features include: maximum feed size 5 mm, max. sample quantity 10 ml, final fineness 10 μm; effective comminution in a narrow, homogeneous particle size range; loss-free grinding in a closed vessel, dry or in suspension; window for observing the grinding progress; cryogenic grinding and simple embrittling in the cryo-box; mortars and grinding balls in 6 different materials available; modular system for simple conversion to dry or wet sieving; grinding bowl oscillations 3,000 – 3,600 oscillations/min at 1 – 3 mm amplitude; adjustable oscillation amplitude for easy adaption of the vibration energy to the grinding sample.
