New Automated Plate Sealer

Apr 02 2006 Read 2691 Times

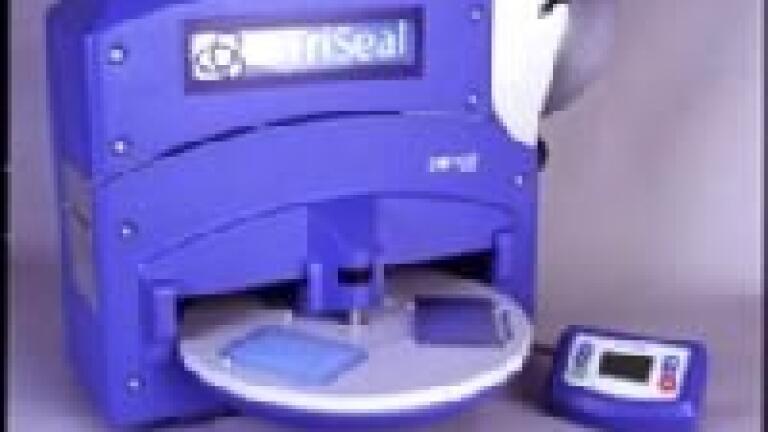

Porvair Sciences has announced TriSeal - its new automated heat sealer optimised for medium to high throughput plate sealing applications.

The versatile new instrument has been designed to produce an accurate and tight seal on any SBS proposed standard microplate from 5 to 47mm in height. Offering adjustable temperature heat sealing from 50C up to 185C TriSeal is able to operate optimally with most foil and film seals. Benefiting from a unique turntable design, which allows simultaneous loading, unloading and sealing TriSeal is able to achieve an unmatched plate sealing productivity of 12 plates per minute.

TriSeal has been designed for stand-alone operation as well as integration via RS232 connection with most robotic plate stackers and automated equipment lines. In stand-alone mode a portable keypad/display unit that allows user definable settings to be saved and recalled for later use provides intuitive and simple control of the system. A 610 metre sealing film roll enables up to 5,000 plates to be sealed without intervention. A swing out loading shoe feed design allows fast and easy loading of foil or films.

Pneumatically operated, the robust and reliable TriSeal requires only compressed air and mains voltage for routine high-throughput operation.
