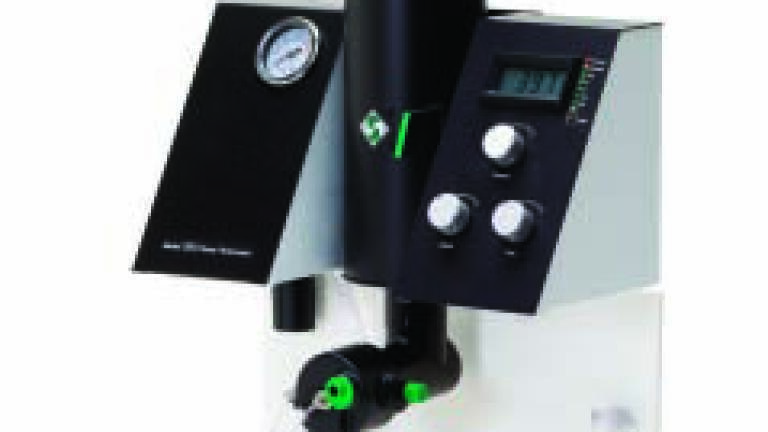

New Clinical Model 360 Flame Photometer Receives Glowing Praise

A new clinical version of the successful Model 360 Flame Photometer from Sherwood Scientific adds sodium linearisation for simple calibration, providing a low-cost instrument with unrivalled precision, ergonomic design and ease of maintenance.

The Clinical Model 360 is a single channel unit built around the very same mixing chamber, burner stem and burner head found in Sherwood’s acclaimed Model 410. It also incorporates the advanced automatic flame optimisation technology from the dual channel 420 series. As a result the Clinical 360 is fundamentally more stable, less noisy and with lower limits of detection than would be expected in such a cost-effective instrument.

Ease of operation is ensured by the ergonomic design, which uniquely places all the controls, the pressure gauge, air regulator and sample introduction on the front of the instrument. The large unobstructed sample work area features an innovative spill containment tray, which is easy to remove and clean. LEDs on the front panel indicate the filter selected – sodium, potassium, lithium, calcium or barium – and the flame status. The detector response is automatically ‘linearised’ over the clinical measurement range when the sodium filter is selected. A useful display ‘hold’ button ensures that readings are not lost before they have been recorded and the

peak picker function presents unambiguous results.

The Clinical 360 has a conveniently small footprint of 20 x 30cm and provides exceptional ease of maintenance. The mixing chamber, burner head and burner stem come apart for cleaning without tools and the five-element filter stick is simple to remove. Electronics and pneumatics are housed in separate ‘pods’, which are easily detached from the main instrument chassis. This greatly reduces shipping costs in the event that a return-to-base repair or replacement becomes necessary. Similarly, the instrument is shipped with the chimney removed as the smaller volume reduces air-freight costs significantly.

Clinical Model 360 flame photometers offer enhanced value by including a selection of standard solutions and spare parts within the price.
