The Ultimate Starter Flow Chemistry System

Chemistry automation product innovator, Syrris offers the Asia range of flow chemistry systems for performing a wide

variety of chemical reactions. The portfolio includes the Asia 110 system, ideal for customers who demand high quality

but have limited budgets. The Asia 110 is an excellent value, easy to use system that is ideal for beginners in solution

phase flow chemistry.

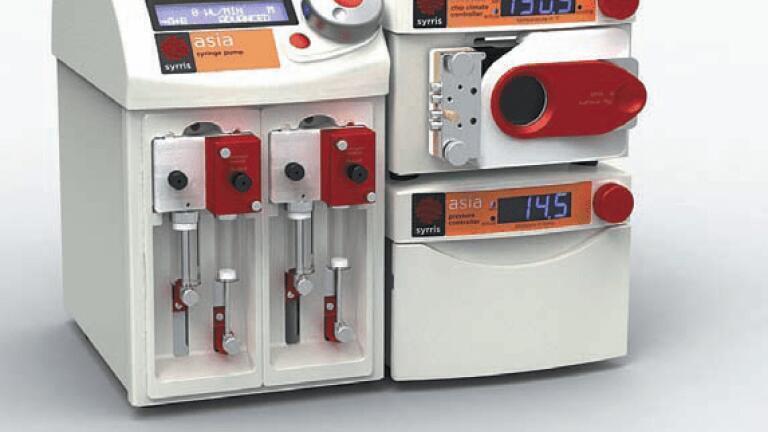

This very compact system combines the high performance of an Asia Pump, an Asia Chip Climate Controller, a glass

microreactor (‘chip’) and an Asia Pressure Controller. The Asia Pump is extremely chemically resistant and designed

specifically for flow chemistry. It has two continuous pumps for delivering smooth flow from 1μL/min to 10mL/min. The

pump has an integrated Pressure Sensor, which allows it to automatically stop in the case of a blockages or leak.

The Asia 110 system includes one or many glass microreactors that offer excellent mixing, easy visualisation of the reaction and maximum chemical resistance. The Asia Chip Climate Controller enables the microreactors to be heated from -15 to +150ºC without the need for a circulator or a cold water supply. The Asia Pressure controller enables ultra fast reaction rates; the pressure controller automatically regulates a laboratory gas supply to pressurise the reaction up to 20 bar.

The Asia 110 System can be upgraded to include automated collection, use of solid phase reagents, temperatures up to 250ºC, kg synthesis, analysis integration, flow liquid-liquid extraction and full software control.
