NEW from Eppendorf the TCA-3 - Data Logger and Advanced Auto-Dialer for ULT Freezers

Refrigerators / freezers

NEW from Eppendorf the TCA-3 - Data Logger and Advanced Auto-Dialer for ULT Freezers

07 Nov, 2012

Published over 13 years ago. See the latest and most current information on Refrigerators / freezers.

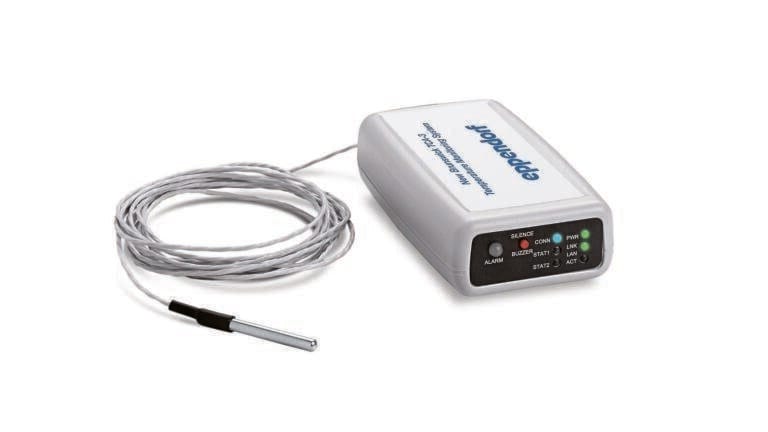

Eppendorf proudly presents the new all-in-one TCA-3 Temperature Monitoring System. The TCA-3 is an independent temperature monitor with alarm, electronic chart recorder, and an autodialer — all incorporated in a compact communication pod. There is no software to install The TCA-3 transmits data to professionally-managed centralized data servers where redundant systems store and record chamber and ambient temperature and alarms. Access real-time data via a web portal from anywhere in the world. The intuitive data graphing and tracking functions provide a complete record of freezer performance. To see how easy it is to install the Eppendorf TCA-3 visit: www.epppendorf.com/freezers

Features

  • Web-based access to data from anywhere in the world
  • Secure, encrypted data transmission
  • Ambient temperature probe
  • System setup in less than 5 minutes - simply connect to Ethernet
  • No software to install or maintain
  • Phone, text and e-mail alarm notification
  • Historic data recording and report generation
  • Non-alterable data meets regulatory requirements
  • Data enables corrective action plans
  • Independent alarm notifications
  • Compatible with any freezer
  • Firewall compatible
  • Power over Ethernet

Click here to try the TCA-3 Demo!

Technical specifications
Dimensions 125 x 65 x 30 mm
Weight 227 g
Sampling rate User-selected, 30 sec. to 24 hr.
Emergency data storage 256 data points
Operating environment -40° C to 70° C, 5 to 95 % rh

Performance specifications
In-Chamber Temperature Sensor
Temperature range -200° C to +200° C
Typical accuracy  ±1° C
Measurement resolution  0.1° C
Sensor type  1 x RTD
Ambient Temperature Sensor
Temperature range -40° C to +70° C
Typical accuracy at  25° C ±1.4° C
Typical accuracy over full range  ±2.1 %
Measurement resolution 0.21° C

Ordering information
Description  Electrical service
Pod and probe with wall plug power 50 Hz
Order No. P0625-2050

Your local distributor: www.eppendorf.com/worldwide

Eppendorf AG • Hamburg • Germany • Tel: +49 40 538 01-0

Application Support E-mail: [email protected]

www.eppendorf.com

eppendorf® is a registered trademark of Eppendorf AG, Hamburg, Germany. All rights reserved, including graphics and images. Copyright© 2012 by Eppendorf AG.
