• Large Capacity HPLC Column Heater/Chiller


Large Capacity HPLC Column Heater/Chiller

Jun 14 2023

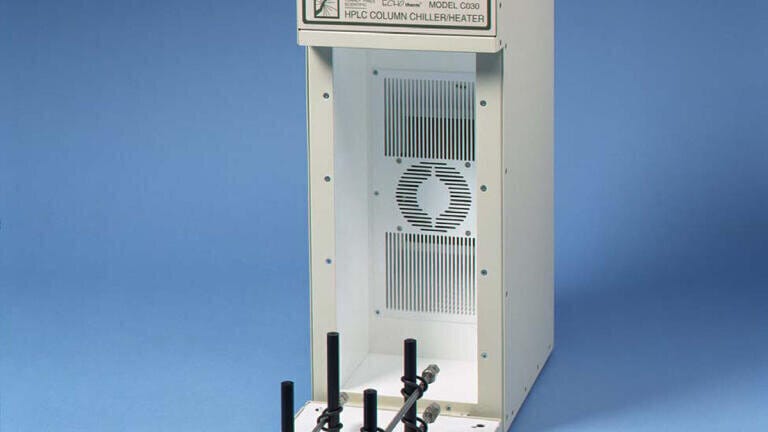

Torrey Pines Scientific announces the launch of its EchoTherm™ HPLC Column Chiller/Heater Model CO30, equipped with the most spacious and easily accessible chamber in the market. This innovative column chiller/heater boasts a temperature range of 4.0°C to 70.0°C, offering precise readings and settings down to 0.1°C.

With advanced PID temperature control software, the EchoTherm Model CO30 ensures temperature regulation within an impressive ±0.2°C, even in ambient conditions. The generously sized chamber, measuring 15.625" tall x 6.385" wide x 5.125" deep, accommodates up to four 30 cm x 1 inch columns, along with valves, tubing, and fittings. An internal fan maintains consistent temperature throughout the chamber. The chamber door opens downward to the front, allowing unobstructed and effortless access to columns, valves, and fittings.

The EchoTherm Model CO30 also features an RS232 I/O port for seamless programming and data collection, a timer with user-settable Auto-Off functionality, environmentally friendly Peltier technology free from CFCs, separate drains for the chamber and valve, as well as a twelve-month warranty. The unit comes complete with a valve mounting hole, a 3-wire AC line cord, fused high and neutral lines, and an instruction manual.

Available in 100, 115, or 230 VAC, 50/60Hz models, the Model CO30 is certified with UL, CSA, and CE approvals, ensuring utmost safety and reliability.

More information online
