Enhanced Air Dryer Range Offers complete Reliability and Lowest Running Costs

Feb 20 2018 Read 625 Times

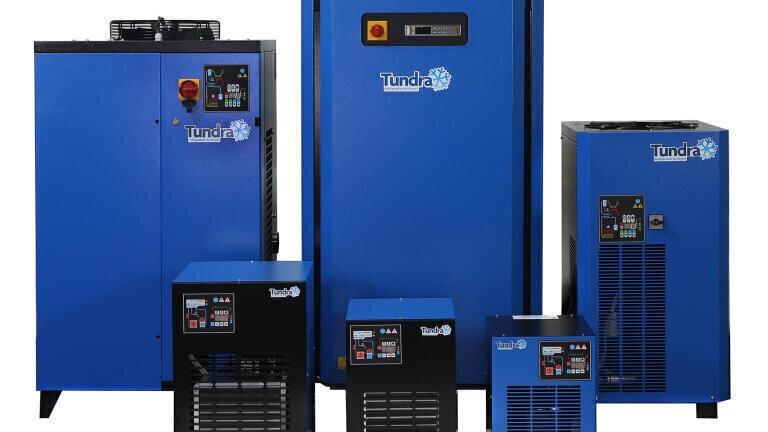

Hi-line Industries has made a number of enhancements to its already class-leading Tundra range of refrigeration dryers. Thanks to an impeccable reliability rate, with zero failures from hundreds of models already sold, the 2018 series is offered with a new two-year warranty. Moreover, the latest dryers provide the lowest possible running costs and increased flow via a new Hi-Flo heat exchanger with larger ports. The 2018 Tundra range is Hi-line’s most energy efficient to date, with a robust and high quality build standard.

Among many proprietary innovations, Hi-line’s integral Direct Expansion technology offers a constant +3°C dewpoint at all times, unlike chilled mass dryers, which can be as high as +10°C during their thermal cycle. Furthermore, the new and improved single-cell, all-aluminium heat exchanger module gives the most efficient transfer of heat at the lowest energy cost.

Another important energy-saving features of the latest Tundra dryers is the variable-speed fan, which ensures only the required amount of energy is consumed. Moreover, by controlling the fan speed on the refrigerant circuit, Hi-line has been able to eliminate components such as fan-pressure switches, which can often become defective in this type of dryer.

2018 Tundra dryers are built with Scroll refrigerant Freon compressors, which offer the lowest possible power consumption and deliver a cost-effective, long-life performance. With reliability at the forefront, Tundra 2018 models offer multiple new design features to ensure constant dewpoint at all load levels and deliver continuous dry-air performance that satisfies ISO 7183 industry standards.

Another benefit sees the microprocessor-based multifunctional controller linked to the condensate removal valve, thus minimising any loss of compressed air as the condensate is discharged. Full programmability ensures settings can be adjusted to suit climatic conditions. The 2018 Tundra also has the option of Hi-line’s ZLD zero-loss auto drain, which is designed to eliminate accumulated contaminants from pressurised air systems.

The 2018 Tundra series comprises 16 models spanning compressed air flows from 22 to 1700 cfm (37 to 2888 m3/hr) and operating pressure from 4 to 16 barg. Maximum inlet air temperature is +60°C, with ambient air temperature up to +50°C. High pressure (up to 50 barg) and thermal mass versions can be ordered. Hi-line’s standard range is available ex-stock at from the company’s Burton factory for next-day delivery, with larger dryers up to 9988 cfm available on short lead-times.
