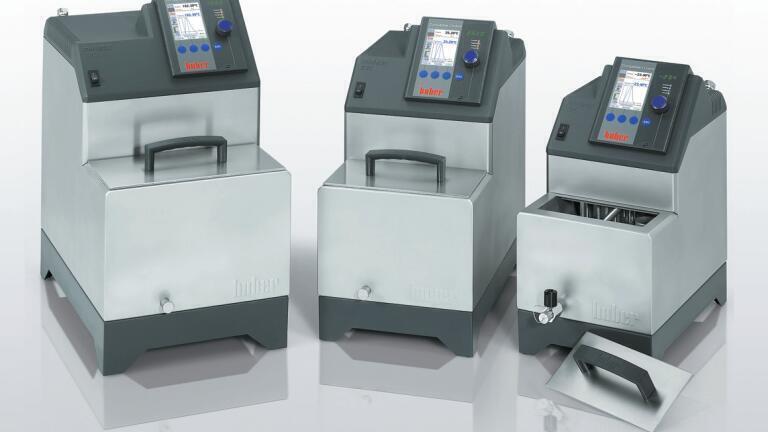

Small Cooling Thermostat Meets Powerful Demands

Huber Ministats® are the smallest cooling thermostats in the world, allowing them to be placed in areas where space is at a premium. Despite small footprint Ministats offer enough power to thermoregulate photometers, refractometers, viscosimeters distillation apparatus, reaction vessels and mini plants. Ministats can be used to control externally closed applications or alternatively objects can be thermoregulated directly within the bath.

The Ministat range consists of three models: available as either air or water-cooled versions. Depending on the

model, working temperatures are from -45°C to +200°C

and cooling capacities of 600 watts can be achieved.

A powerful variable speed pressure/suction pump allows optimum circulation and can be controlled using an optional pressure sensor, which protects delicate glassware.

The professional CC-Pilot controller comes as standard with TFT Display, six language options, RS232, sensor calibration, calendar and clock function, Auto-Start, adjustable safety limiting values and alarm signals.

The CC-Pilot can be electronically upgrade to extend the functionality and activate further features, such as, programmer, cascade control, ramp function, user menus, calendar start and graphic display.

Analogue connections according to NAMUR are available via the optional ComG@te module, which enables integration into plants and process control systems.
