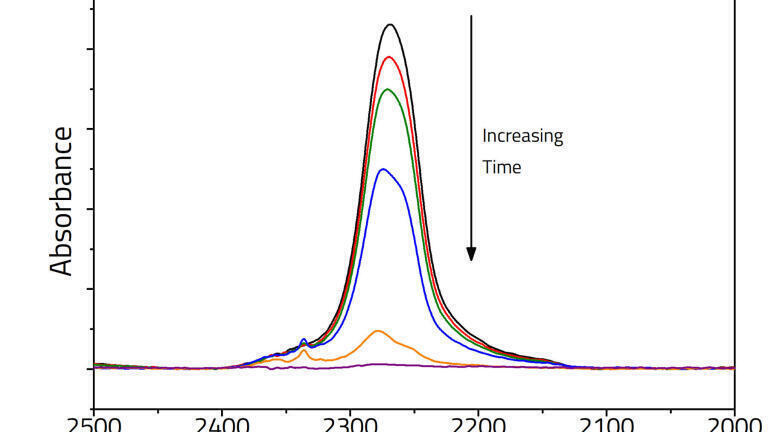

  • Fig1. Decay of NCO in absorbance mode over time in a two-pot packaging adhesive at standard mix ratio

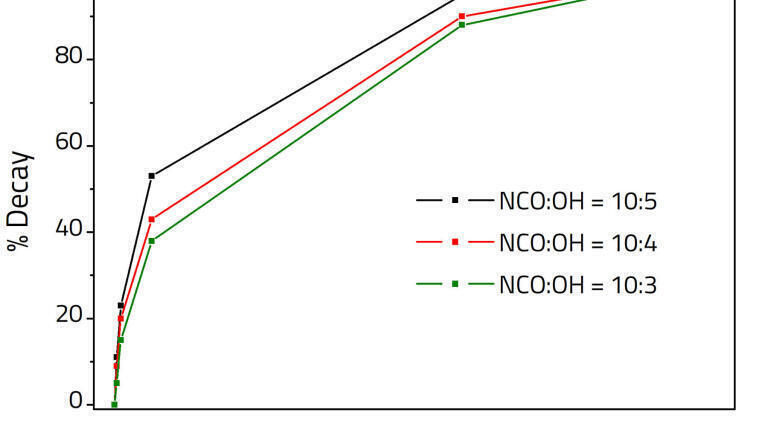

  • Fig2. Curing speed of adhesives at different mix ratios

Laboratory Products

Analysis of Packaging Adhesives using The Arrow

Sep 08 2020

Did you know that your crisps packets, drink pouches or even dog food packaging are made of many polymer layers stuck together by glue to optimise mechanical and barrier properties? Conventional Lamination Adhesives used in multi-layered flexible packaging are commonly a product of solvent-based or solvent free two-pot systems that undergo the following reaction:

Polyol (-OH) + Isocyanate (-N=C=O) → Polyurethane lamination adhesive (-NHCOO-)

The packaging industry often use FTIR to screen test the decay rate of isocyanate (NCO) in a freshly applied adhesive because unreacted aromatic NCO molecules can migrate through laminated packaging into food to react with water molecules, generating carcinogenic primary aromatic amines that are harmful to humans and pets alike! By measuring the reduction of NCO absorbance peak height over time at ~2270-2250 cm-1, this decay serves as an indicator for adhesive curing speed and food packaging safety. The spectra below were taken over time from the same solvent free adhesive on a single Arrow slide:

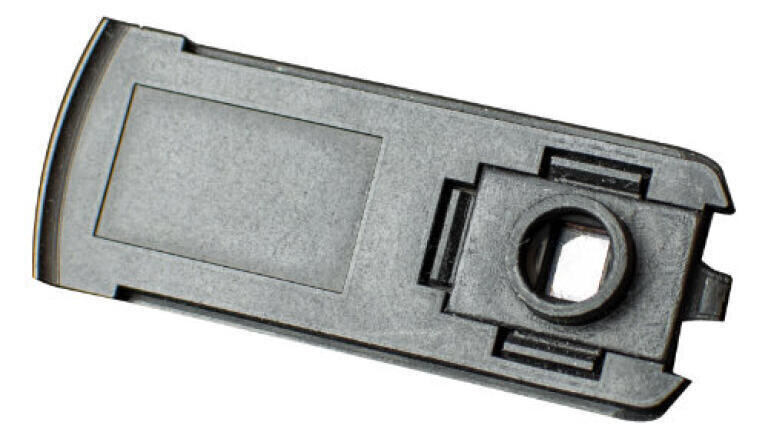

Multiple Arrow Slides can also be used to compare the curing speed of different adhesives at the same time. Adhesive curing speed has many variables like OH to NCO mix ratio, curing temperature, relative humidity, the crosslink-ability of starting components and the reactivity of the aromatic NCO component amongst other factors. Sometimes the curing process can take days or even weeks, so to have just one conventional crystal ATR puck occupied for prolonged periods might not be coolest idea! High volume batch sampling using Arrow consumable ATR Slides can really save you time and speed up your work to make your organisation more competitive! Furthermore, once the polyurethane product is formed on your crystal, it could be difficult to remove and you might run the risk of damaging a relatively more expensive crystal puck; after all glue is designed to stick! So, the next time you test a sticky adhesive, varnish, paint, ink, or coating, why not give the Arrow a go?

The biggest advantages of Arrow consumable ATR Slides when analysing packaging adhesives include:

  • Perfect for irreversible reactions: once the polyurethane thermoset is cured, it does not go back to its original components and will be hard to remove; it is extremely clingy!
  • No sample prep: conventional FTIR transmission methods require lamination by hand or machine which are time-consuming processes that waste packaging substrates.
  • No cleaning required: Arrow eliminates the use of hazardous cleaning solvents because there is no lamination required!
  • Monitoring of multiple samples in an inexpensive way.
