Inert Low Cost Flow Meter for OEM Applications
Feb 01 2012

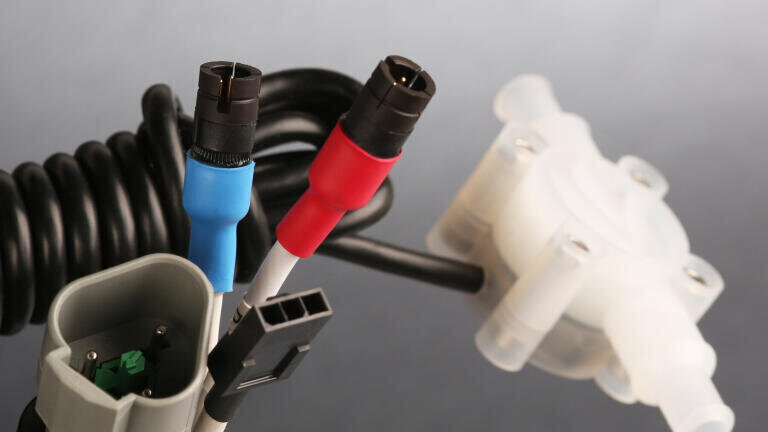

Titan Enterprises announces its third generation 800 Series flow meter range. The new 800 Series flow meters incorporate a wide range of developments further enhancing long-term, high performance operation for OEM customers in drink dispensing, laboratory testing, cooling, pharmaceutical, medical and semiconductor applications.
The competitively priced 800 series turbine flow meter is designed to give high performance (+/- 0.1% repeatability) across 6 flow ranges from 0.05 to 15 litres per minute. It's totally non-metallic wetted components make it the ideal choice for the metering of a wide range of fluids from -25°C to +125°C. To ensure the highest degree of inertness to metered fluids the new 800 Series flow meter body is now moulded in an FDA approved grade of PDVF. The new 800 Series standard ‘O’ ring is FDA approved Viton® (alternative elastomers such as silicon, EPDM, nitrile, Kalrez, Simrez are also available). The magnets in the 'Hall Effect' turbine flow meter have been over moulded to provide long term chemical resistance and are in the same material as the body. Small adjustments to the internal geometry of the 800 Series flow meter have resulted in improvements in the lower flow ranges performance. The flow meter bearings remain the same robust, inert sapphire that has served the product so well over the past 25 years. The outside of the meter is identical to the previous construction.
To further expand the range of applications the 800 Series can serve - a new version of the flow meter is available in polypropylene for fluids with high pH values. To ensure the availability of an optimised solution for your flow metering application, Titan is happy to discuss differing flow ranges, pressure drop requirements or cable configurations and connectivity for OEM customers.
