Customised Cryo-Stage Enables AFM Users to Study Surface Properties Over an Extended Temperature Range

Mar 15 2017 Read 1335 Times

Linkam Scientific Instruments, have been chosen by JPK Instruments to supply a customised version of one of their cryo-stage systems to enable surface properties to be studied over an extended temperature range.

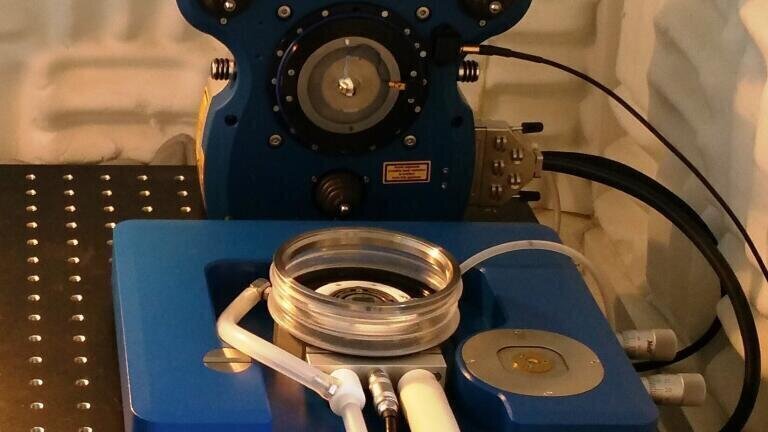

Bringing their technologies together has enabled JPK to offer cryo-stage capability for their NanoWizard® AFM systems. This means AFM users may now study surface property changes as a function of temperature over the range of -120°C to +220°C.

Head of Applications at JPK, Dr Heiko Haschke, describes the background to the development starting with the need as defined by JPK's users. “The goal of the CryoStage product development at JPK instruments was to offer a versatile heating and cooling platform in one single piece of equipment. One of the main challenges is to design a stage for heating and cooling the sample while simultaneously performing atomic force microscopy (AFM) experiments. In addition, a controlled gas and ice free environment chamber needs to be guaranteed. Having set itself the target of a temperature range of from below -100°C to above +200°C, we were able to customise Linkam's cryo-technology and obtain sample cooling to -120°C and heating to +220°C.”

Asked why JPK chose Linkam's technology, Dr Haschke said: “The main alternative to the Linkam stage technology was for us to design a completely new product. However, we could significantly speed up the development by using the well-known and respected products from Linkam. As a result, after careful project planning, JPK Instruments selected Linkam’s technology and no other commercial equipment was evaluated. The main benefit of the Linkam stage was that it was a completely finished product on the market with almost precisely the ranges and specifications JPK Instruments needed, e.g. temperature stability of +/- 0.2°C. Linkam was also known to some employees at JPK Instruments who had good experience working with Linkam in the past. High-resolution AFM on a stage with cryogenic nitrogen pumps required some adjustments on the stage support in order minimise temperature drift. The adjustments were only possible due to the good Linkam technical support. In addition, the ergonomic, user-friendly control of the Linkam stage gave the product a modern finish.”
