Increased GC Productivity with LTM Rapid Heating/ Cooling Option

Jun 05 2009

Agilent Technologies, Inc has announced a new low thermal mass (LTM) system for rapid heating and cooling of its 7890A gas  chromatograph (GC), greatly increasing productivity by significantly reducing analytical cycle times. This option is also available for the older Agilent 6890 GC.

Agilent acquired this proprietary LTM technology with the purchase of RVM Scientific in June 2008. The patented design involves wrapping heating elements and temperature sensors directly around the GC column, enabling dramatically faster temperature cycles compared to standard oven-based configurations.

The fast cycle times of LTM are particularly well suited for the hydrocarbon industry, environmental analysis, food safety testing, forensics, pharmaceutical QA/QC and food/flavor/fragrance analysis.

Until now, due to their interwoven heating elements, a concern about LTM columns was protecting the inlet end of the column from contamination. Agilent already had a solution to this problem with its Capillary Flow Technology.

Using this proprietary, leak-free method of flow connection and diversion, Agilent developed a robust backflush function, letting users flush high boiling compounds back out of the column inlet to extend column life. This technique has the added benefit of eliminating  time-consuming column bakeout of these late eluting compounds, further increasing throughput by a wide margin.

Agilent Capillary Flow Technology also enables other  useful configurations, including multidimensional GC and comprehensive GC for complex samples. With LTM technology, multiple LTM column modules can be temperature programmed for simultaneous, independent operation.

The Agilent LTM option uses the same injectors, detectors and fused silica columns of the Agilent 7890A or 6890, requiring little change to existing GC and GC/MS methods.

Agilent Method Translation Software makes any desired changes easy to achieve. The LTM configuration delivers excellent retention time repeatability comparable to conventional GC.

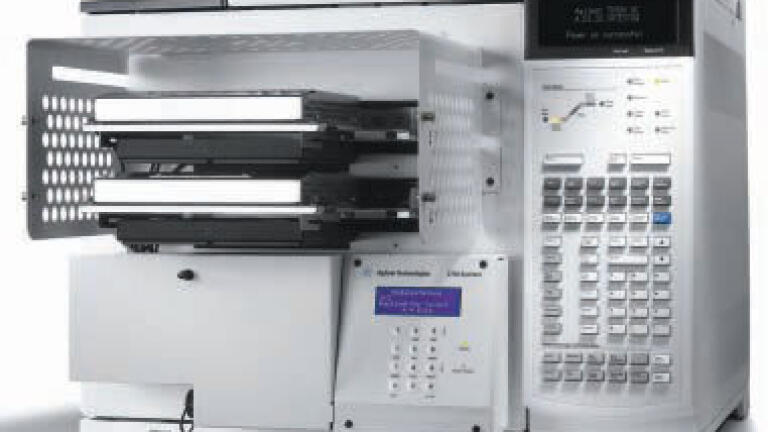

LTM hardware consists of a replacement door for the Agilent 7890A or 6890 GC, containing built-in electronics and slots for one to four GC column modules.
LTM control software integrates with specific Agilent software platforms, including GC and GC/MS ChemStation, for convenient operation. If desired, the instrument can still be used as a conventional oven-based GC.
