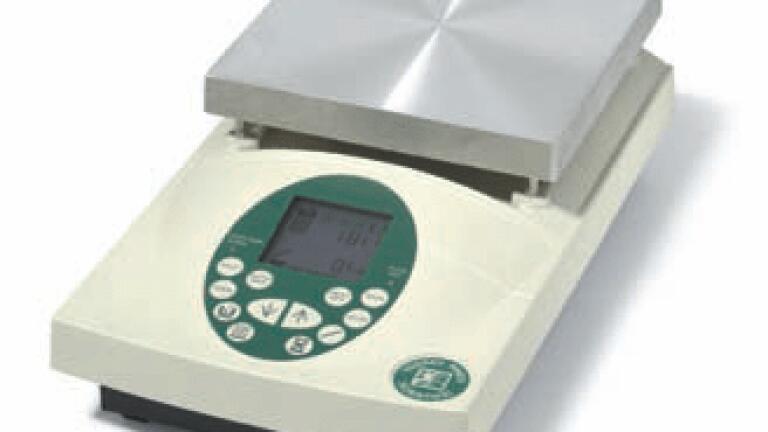

New Programmable Hot Plate with Milled-Flat Top

Torrey Pines Scientific, Inc has announced its newEchoTherm™ Programmable Digital Hot Plate with

milled-flat cast aluminum top.

This new model is ideal for use in precisely heating solids like silicon wafers, electronic chips, displays, adhesives and for doing photo-resists. With the easy to use EchoTherm™ Model HP40A, programming is done through the front panel membrane switch and full-functioned custom liquid crystal display.

The unit can store 10 programs in memory of as many as 10 steps each where each step is a temperature, temperature ramp rate if wanted, and time. Each program can be made to repeat itself automatically from 1 to 98 times or infinitely.

Heater plates are 8" (203mm) x 8" (203mm) milledflat cast aluminum. The plate surface can be evenly heated from ambient to 400°C in less than 10 minutes. Plate surface temperature is controlled directly using the PID control loop to 1°C of the target.

Accuracy is 1% of the heater setting over the entire range. Temperature sensing is by platinum RTD built into the heater plate. The units are supplied with temperature calibration certificates traceable to NIST.

Temperature ramping up and down, count down timer with alarm, user settable Auto-Off, and RS232 I/O port are standard.

Various sample probes are available as accessories.

The Model HP40A is available in 100, 115, and 230 VAC, 50/60

Hz models. All units are UL, CSA, and CE certified.
